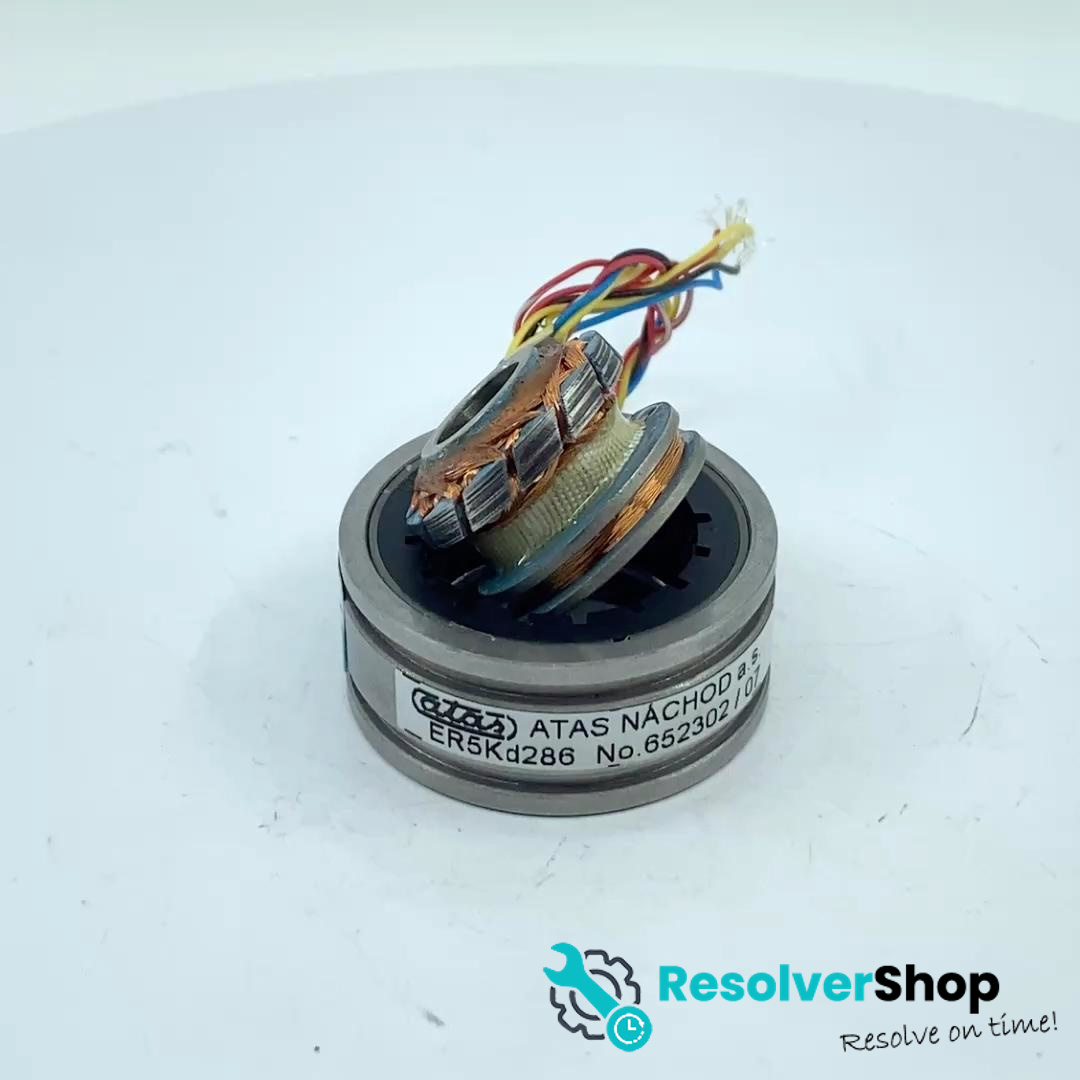

ATAS NACHOD ER5Kd286

The ATAS NACHOD ER5Kd286 is a high-precision brushless resolver designed for accurate angular position feedback in industrial automation systems. Operating at 7 V RMS and 10 kHz, it features a transformation ratio of 0.5 ±10% and maintains an electrical error within ±10 arcminutes. The resolver supports rotational speeds up to 20,000 RPM and operates reliably within a temperature range of –55°C to +155°C. Its compact design, with a maximum shaft diameter of 10 mm, and robust construction make it suitable for demanding applications such as motor feedback, CNC machinery, and robotics. The ER5Kd286 ensures precise and stable signal output for high-accuracy motion control tasks.
