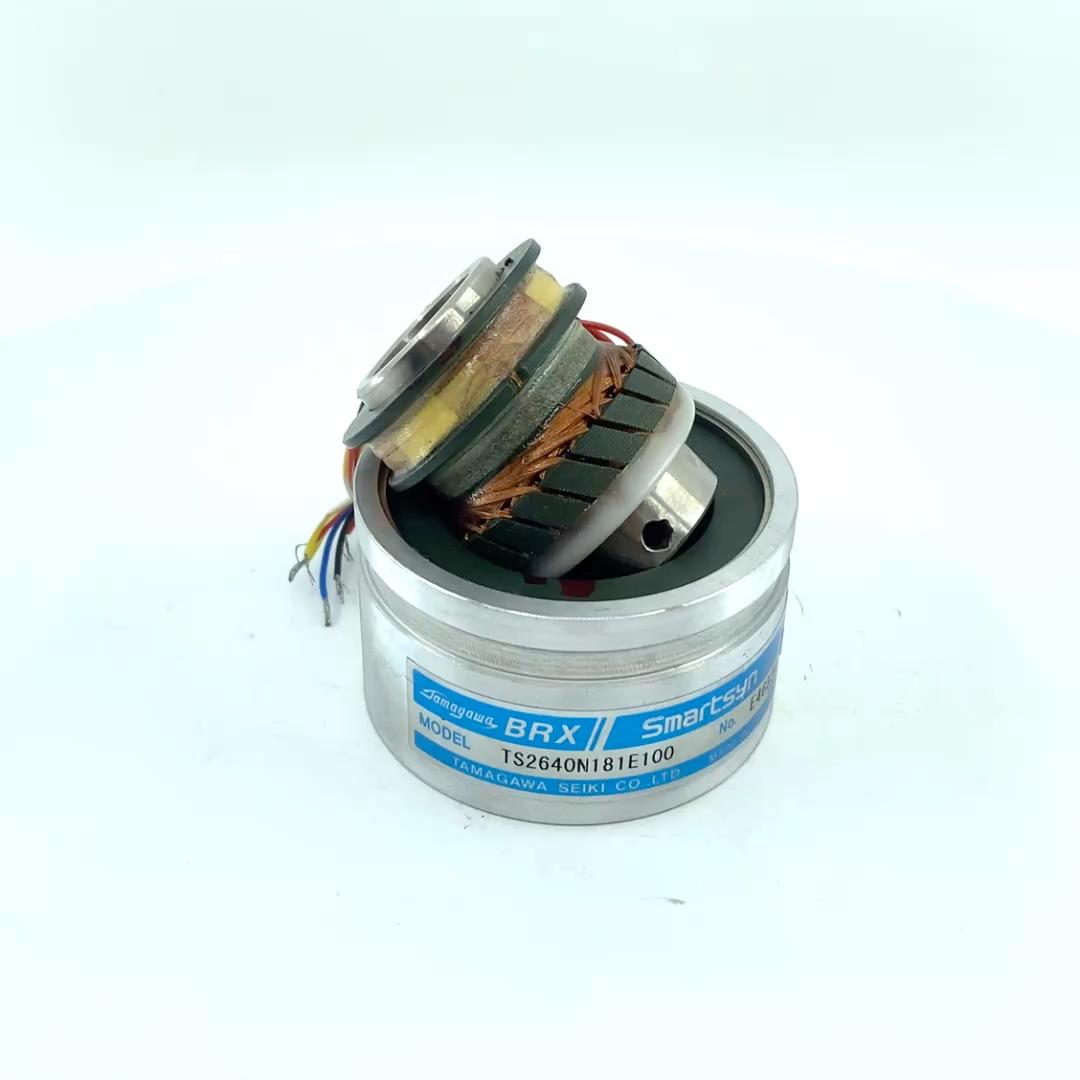

TAMAGAWA BRX TS2640N181E100

The TAMAGAWA TS2640N181E100 is a high-performance brushless Smartsyn resolver (BRX series), ideal for precise angular position sensing in industrial motion control systems. Encased in a compact Size 21 (≈ 270 g) pancake-style housing, it accepts 7 Vrms excitation at 10 kHz and delivers sinusoidal outputs proportional to shaft angle. Built for extreme conditions, it withstands vibrations up to 20 g, shocks up to 100 g, and humidity above 90 % at 60 °C, while operating reliably between –55 °C and +150 °C. Designed for seamless integration into motor and drive modules, it ensures durable, high-resolution feedback in demanding environments.
