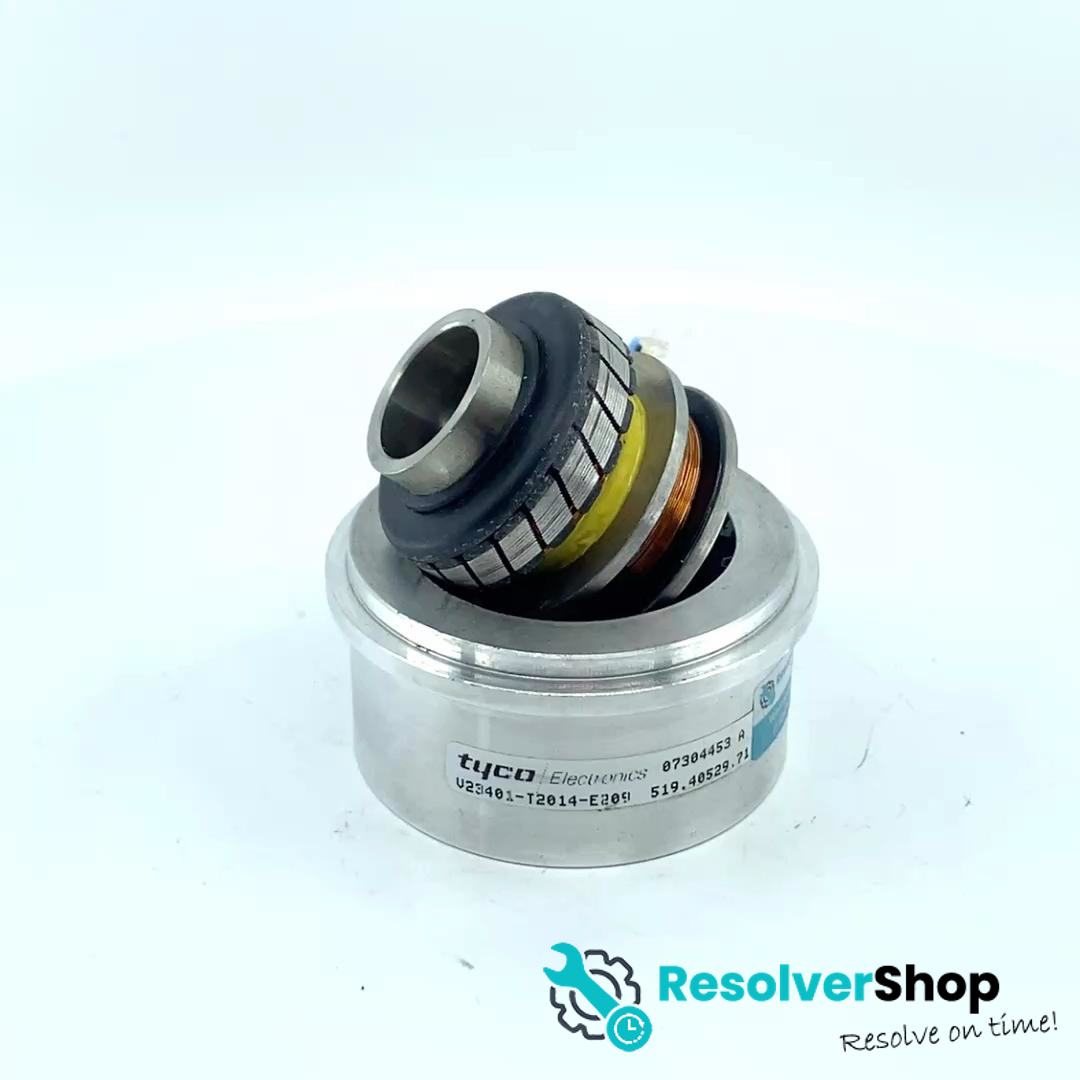

TYCO V23401-T2014-E209 / T2014-E209

The Tyco Electronics V23401-T2014-E209 is a high-precision hollow shaft resolver designed for industrial applications requiring accurate rotary position feedback. Featuring a Size 21 frame with a 16 mm inner shaft diameter, it operates at 7 V and 10 kHz, delivering a transformation ratio of 0.5 ±10%. With a phase shift range of 0° to 10° and an angular error within ±8 arcminutes, it ensures reliable performance in servo systems and automation equipment. The resolver withstands temperatures from -55°C to +150°C and supports speeds up to 20,000 rpm, making it ideal for robotics, CNC machinery, and industrial automation applications.
